Bowhead Ranger 4WD™
ALL-NEW BOWHEAD RANGER 4WD
MORE POWER. MORE TRACTION. EXPAND YOUR RANGE.

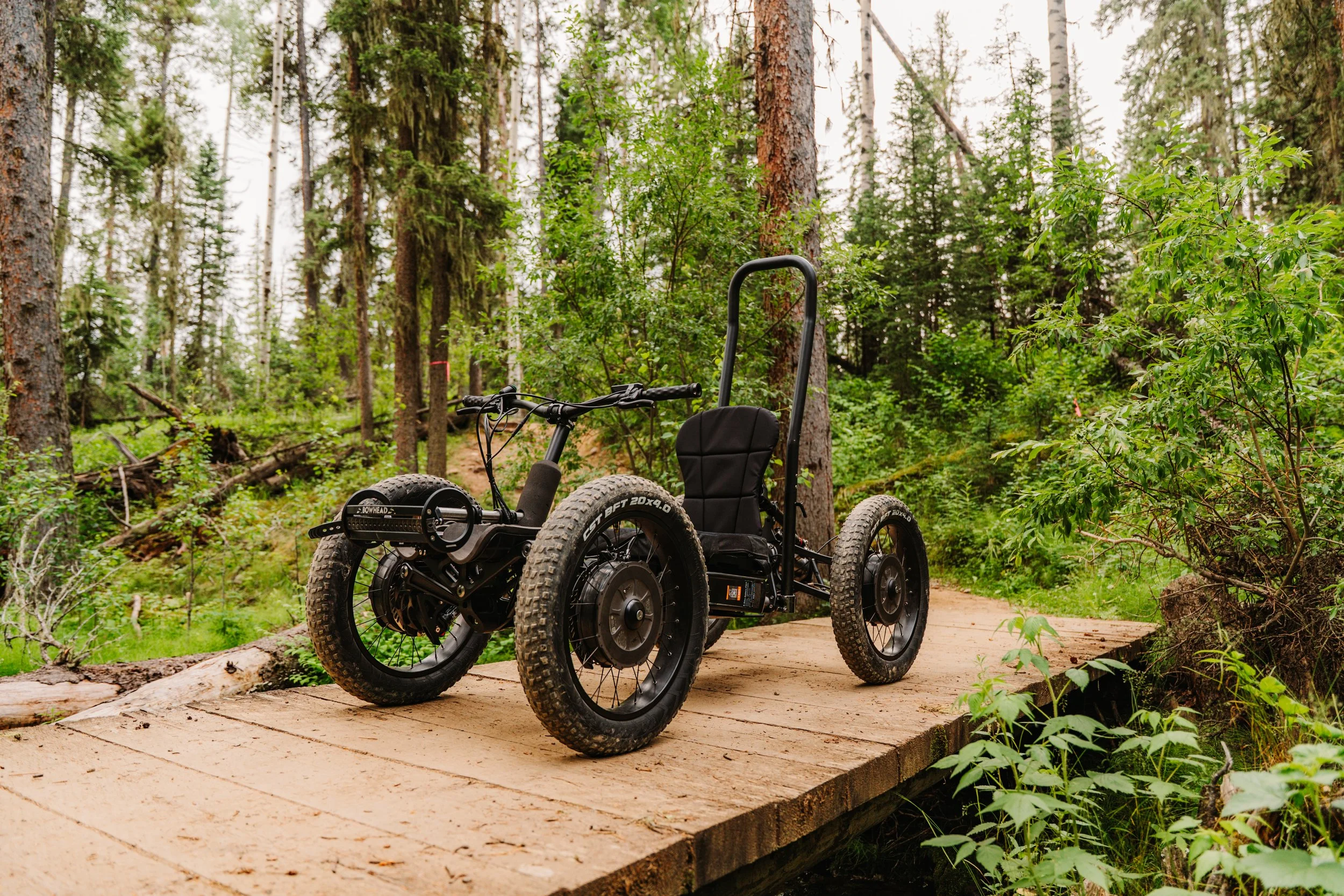

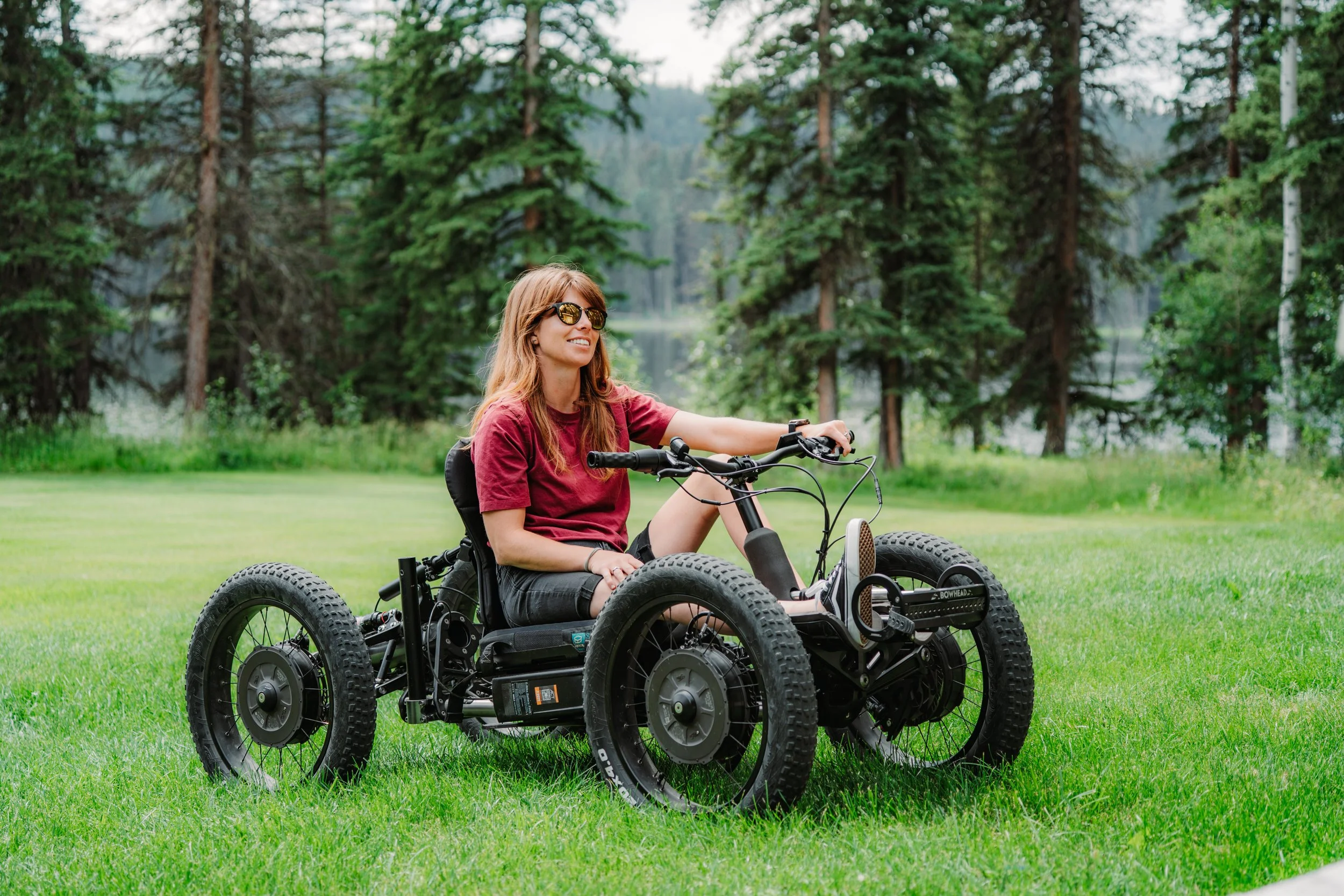

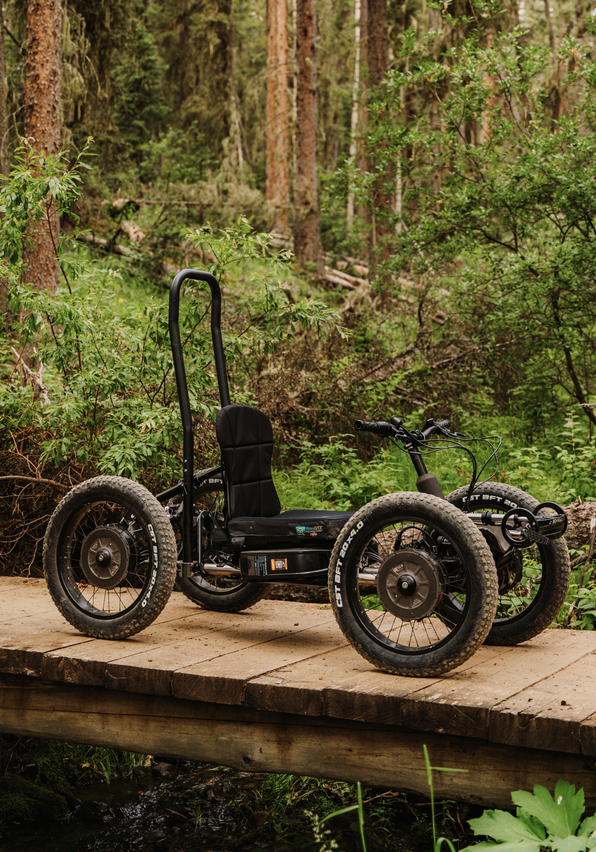

The Bowhead Ranger 4WD is the next evolution of all-terrain freedom. Built with a true four-wheel-drive system, near-silent direct-drive tech, and dual-battery capacity, it delivers unmatched stability and confidence on steep climbs, loose trails, and everyday outdoor adventures.
Whether you’re conquering technical singletrack, carrying gear around camp, or cruising with family, the Ranger 4WD is designed to take you further with fewer limitations.
Key Features:
-
Four independent contact points grip the earth simultaneously. If the rear wheels break loose in sand, mud, or wet roots, the front wheels instantly pull you through.
-
Powered by gearless Grin All-Axle hub motors with zero internal meshing gears. Enjoy pure traction with zero mechanical whine - just the sound of the trail under your tires.
-
Specialized "slow wind" motor stators deliver massive low-end torque. Climb steeper, more technical terrain smoothly without bogging down or overheating.
-
Twin 48V battery packs double your range and effortlessly handle heavy electrical loads. Key-switched, low-center-of-gravity cradles make removal and indoor charging quick and easy. Battery options include 2 x 15Ah as Standard, or 2 x 21Ah as an Upgrade option.
-
Reverse mode on the Ranger is a HUGE game changer! Maneuver on tight trails and get yourself out of any tricky situation.
FEATURES & SPECIFICATIONS
-
1. Length (tire to tire): 71 in
2. Wheelbase (axle to axle): 47 in
3. Width (external from axle to axle): 29 in (front) / 32 in (rear)
4. Height: 35 in
-
122.6 lbs / 55.63 kg
-
Standard: Dual 48V 15.5Ah
Premium: Dual 48V 21Ah
-
GRIN All Axle Hub Motors installed in All 4 Wheels
-
20” x 4.0 fat tires
-
Base: Bowhead FLOW Bushing Front End
Upgrade: Bowhead FLOW Bearing Front End
-
Standard: Original Bowhead Front Suspension
-
Steep climbs, mud, sand, singletrack & everyday touring
-
Titanium
-
Options available. Speak with your sales rep or Bowhead Customer Experience Team.
-
Yes
-
Standard: Provide your own
Upgrade: Vicair 6cm Active O2
Upgrade: Vicair 9cm Active O2
