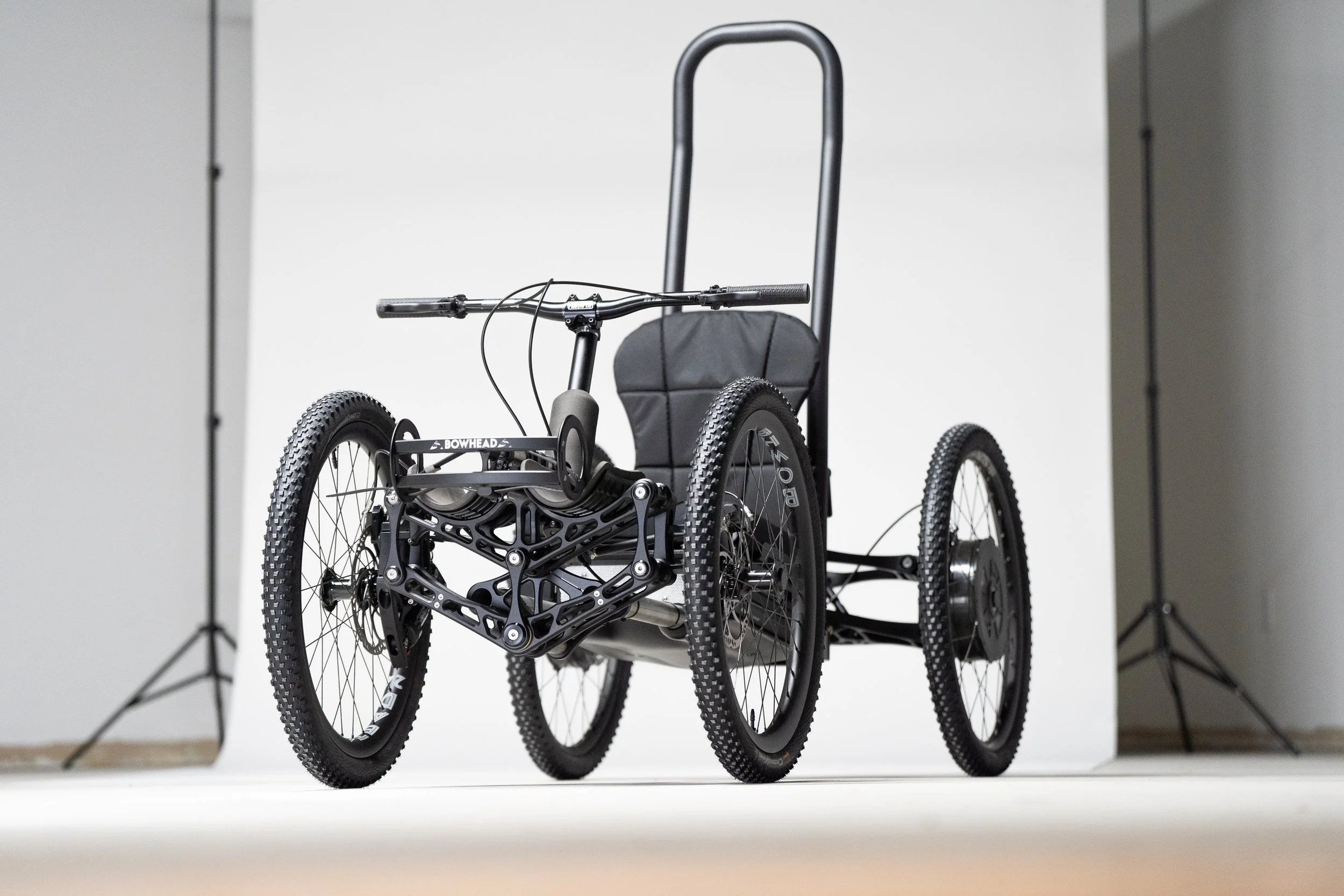

Bowhead Ranger™
DESIGNED FOR STABILITY, BUILT FOR ADVENTURE.
The Bowhead Ranger is the ultimate all-terrain adaptive bike for those who want to explore the outdoors in style and comfort. Whether you’re cruising with family, enjoying nature, or simply enjoying the freedom of the ride, the Ranger is built for you.
With four wheels for enhanced stability, an all-electric drive system, and full suspension, the Ranger is designed for riders seeking balance, control, and adventure. Engineered for those with limited hand function, spinal cord injuries, quadriplegia, or aging riders, this bike redefines what’s possible in outdoor accessibility.
Outfitted with premium suspension and braking components from top mountain bike brands, the Ranger delivers a smooth, controlled, and capable ride on any terrain. Adventure is for everyone—experience it with the Bowhead Ranger.
SUPPLEMENTAL DOCUMENTS
FEATURES & SPECIFICATIONS
-
1. Length (tire to tire): 71 in
2. Wheelbase (axle to axle): 47 in
3. Width (external from axle to axle): 29 in (front) / 32 in (rear)
4. Height: 35 in
-
105 lbs.
-
Loose terrain, sand, mud, trails, & adventure touring
-
Base: Stainless Steel
Upgrade: Titanium
-
Base: Bowhead FLOW Bushing Front End
Upgrade: Bowhead FLOW Bearing Front End
-
Dual rear hub motors (up to 1000W each)
-
Quadbar option available for quad level riders
-
Base: 15.5 Ah Battery
Upgrade: 22 Ah Battery
Can accommodate two batteries at once
-
Front/Rear Base: 24”
Product information below
For customers located outside of USA and CAN please order through your respective reseller
Bowhead MoFlo™ Suspension System
Two years of rigorous development and four generations of prototypes have led to the MoFlo™ - our most advanced front suspension system to date. Designed for the RX, Reach, and Ranger, the MoFlo delivers a massive leap in technical performance and rider ergonomics.
-
Active Braking: Featuring a floating brake mount and refined anti-dive geometry, the MoFlo minimizes brake jack. This ensures your suspension stays active and articulates freely even under heavy braking on steep terrain.
50% More Travel: We’ve increased vertical wheel travel by over 50% compared to previous generations, offering unmatched small-bump compliance and high-speed stability.
Enhanced Clearances: Optimized architecture provides extra hand clearance on the RX and increased ground clearance across all models for technical trail navigation.
-
Durability: We’ve inverted the shock orientation to protect the air valve from debris and impacts.
On-the-Fly Adjustments: The new valve position is more ergonomic, making it significantly easier for riders to make suspension adjustments while on the trail, or adjust air pressure.
Industry Standard: The MoFlo is designed around a 210x55 shock, ensuring robust performance and easy long-term serviceability.
-
Base: X-Fusion O2 Pro — $2,499 (Late June Availability)
Upgrade: Cane Creek AIR IL — $3,099 (Early June Availability)
Premium: Cane Creek COIL IL — $3,199 (Early June Availability)
-
Reach: $499 USD
Ranger: $499 USD
RX: No Charge
-
Check Your Current Setup: The MoFlo system is exclusively compatible with the FLOW Bearing Front End.
Standard on RX: All RX models are equipped and ready for MoFlo.
Reach & Ranger bikes with Bushing Front End: If your bike is equipped with a Bushing Front End, a full front-end upgrade is required to install the MoFlo system. Please ensure you add this upgrade to your preorder. FLOW Bearing Front End can be purchased at this Link
Reach & Ranger bikes with FLOW Bearing Front End: While your bike has the compatible articulation assembly, the MoFlo system requires updated geometry and components. These users will still need to upgrade their Uprights, Kingpin, and Articulation Plate to the new MoFlo-spec components to ensure proper fitment and performance.
MoFlo is not compatible with Lean Assists or Lean Limiters
